Business Connectivity Services (BCS)
Business Connectivity Services (BCS) is a set of components that enable you to work with data that resides outside of SharePoint. The BCS enables you to support the full range of create, retrieve, update, delete, and query (CRUDQ) data operations on external data sources from SharePoint and from Office client applications. We can also connect to database using web service, or data that is published as an OData source or any other types of external data. Business Connectivity Services (BCS) does this through out-of-the box or custom connectors.
External Content Types in BCS
The external content type is a core concept of Business Connectivity Services (BCS). Used throughout the functionality and services offered by BCS, external content types are reusable metadata descriptions of connectivity information and data definitions plus the behaviors you want to apply to a certain category of external data.
External content types enable you to manage and reuse the metadata and behaviors of a business entity, such as a customer or order from a central location, and enable users to interact with that external data and processes in a more meaningful way.
More details on content types in BCS see External content types in SharePoint 2013.
Follow the steps to Connect with SQL External Data Source
1. Open the SharePoint Designer 2013:
2. Provide URL of Site to Open:
3. Provide Credentials to open the site:
4. Create the new external content type and here provide the name of the content type
5. Click on the link text "Click here to discover the external data source operations:
6. Click on the "Add Connection", we can create a new connection by selecting any like .NET Type, SQL Server, WCF Service.
7. Selected SQL server, and enter the Server credentials:
8. Now, see all the tables and views from the database.
9. Following option to create operations against the database:
10. Click on the Next button:
11. Parameters Configurations:
12. Options for Filter parameters Configuration:

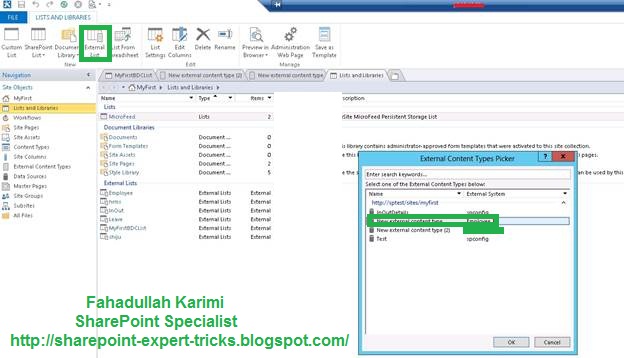

13. Now add new External List, Click on the "External List":
14. Select the Site and click OK:
15. Provide the list name and click OK:
16. Refresh the SharePoint site, see the external list here and click on the list:
We got error message here "Access denied by Business Connectivity."
Solution for Access denied by Business Connectivity Error
17. SharePoint central admin, click on the Manage service application:
18. Click on the Business Data Connectivity Service:
19. Set the permission for list:
20. Click OK button after setting the permissions:
21. Refresh the site this will work. If error message like Login failed for user "NT AUTHORITY\ANONYMOUS LOGON".
Following way to resolve the “NT AUTHORITY\ANONYMOUS LOGON" Error
22. Change the connection properties, the Authentication mode selects the value
"BDC Identity"
.
23. Open SharePoint Management Shell and run following
$bdc = Get-SPServiceApplication |
where {$_ -match “Business Data Connectivity Service”}
$bdc.RevertToSelfAllowed = $true
$bdc.Update();
Now it will work.
24. If still error as following:
Following way to resolve the errors
25. Open SharePoint Management Shell and run the following -
$bcs = Get-SPServiceApplicationProxy | where{$_.GetType().FullName
-eq (‘Microsoft.SharePoint.BusinessData.SharedService.’ + ‘BdcServiceApplicationProxy’)}
$BCSThrottle = Get-SPBusinessDataCatalogThrottleConfig -Scope database
-ThrottleType items -ServiceApplicationProxy $bcs
Set-SPBusinessDataCatalogThrottleConfig -Identity $BCSThrottle -Maximum 1000000 -Default 20000
Finally it will work.
